產品簡介 Introduction

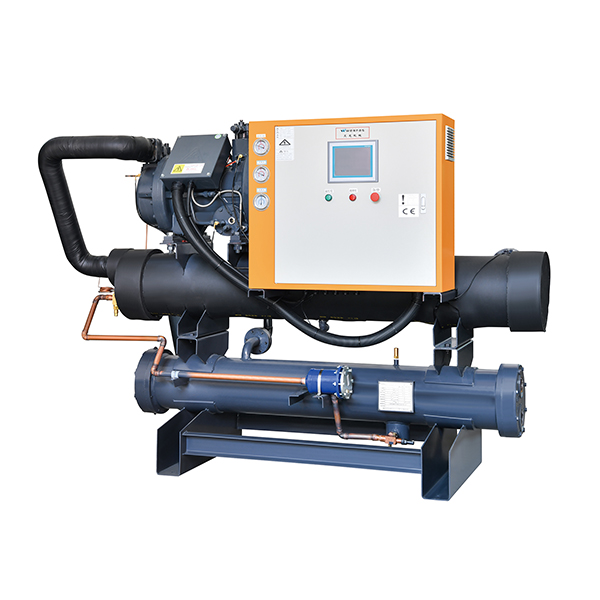

◆ 最高效半封閉式壓縮機組的心臟:采用進口優質螺桿壓縮機,超高效螺旋轉子精密壓縮原理,比一般的壓縮機能效高20%→30%,且運行穩定,效率高,維護容易。機組采用智慧型微電腦觸摸屏+高精控制系統:裝備有100%,75% ,50%,25%分級能量控制功能,具有良好的中英文選擇人機對話介面,液晶顯示屏即時顯示機器工作狀況。此能量控制確保機組在負荷時發揮最大節能效果,機組采用高效殼管式冷凝器+殼管式蒸發器組合:維護保養方便,冷媒高/低壓管大部分采用304無縫綱管焊制成型:防撞/防壓,經久耐用,永遠不會產生銹垢,外加高效的螺桿壓縮機:保證了機組的高效率工作,該機配置以下部件以防止任何運轉故障:壓縮機保護計時器,過流保護,壓縮機電機溫感器,高/低壓保護,油壓保護,防凍結溫控器,油視液鏡,壓縮機逆相保護,排氣高溫保護,安全閥,易溶塞等。
◆ 水冷螺桿式冷水機安裝時必須配備相應的冷卻水塔及冷卻水循環水泵方可正常使用,且連接配置機外保溫水箱或水池/水槽及相應冷凍水:內/外循環水泵,才能組成一套完整的集中型冷凍水循環系統。
◆ 該機型為開放式共分:標準立式機型(30HP→80HP),標準臥式機型(100HP及以上),另可訂制箱體式機型及各種非標機型:低溫型機組,防爆機組等。
◆ The heart of the most efficient semi-hermetic compressor unit: It adoptsimported high-quality screw compressors, super-efficient screw rotor precisioncompression principle, 20%→30% higher than the general compressor energyefficiency, stable operation, high efficiency, and easy maintenance. The unitadopts a smart microcomputer touch screen + high-precision control system:equipped with 100%, 75%, 50%, 25% graded energy control functions, witha good Chinese and English selection man-machine dialogue interface, and theLCD screen displays the machine’s working status in real time. , This energycontrol ensures that the unit exerts the maximum energy-saving effect underload. The unit adopts a high-ficiency shell and tube condenser + shell andtube evaporator combination: easy maintenance, and most of the refrigeranthigh/low pressure pipes are made of 304 seamless steel pipe welding Type:Anti-collision/anti-pressure, durable, never produce rust, plus high-efficiencyscrew compressor: to ensure the high efficiency of the unit, the machine isequipped with the following components to prevent any operation failure:compressor protection timer, Overcurrent protection, compressor motortemperature sensor, high/low pressure protection, oil pressure protection, antifreeze thermostat, oil sight glass, compressor reverse phase protection,exhaust high temperature protection, safety valve, easy-dissolving plug, etc.
◆ The water-cooled screw chiller must be equipped with the correspondingcooling water tower and cooling water circulating water pump before it can beused normally, and it is connected to the external insulation water tank orpool/sink and the corresponding chilled water: internal/external circulatingwater pump to form a complete set Centralized chilled water circulationsystem.
◆ This model is open and divided into: standard vertical model (30HP→80HP),standard horizontal model (100HP and above), and customized cabinet modeland various non-standard models: low temperature model Units, explosionproof units, etc.
